JQB-WV Rock Wave Velocity Tester
Keywords:
Category:
Detailed description
The JQB-WV wave velocity tester is a professional instrument specifically designed for rock wave velocity testing. It features meticulous craftsmanship, high detection efficiency, and the ability to calculate wave velocity and amplitude on-site. It is suitable not only for rock mass wave velocity testing in engineering construction but also for indoor experimental wave velocity testing and research on small-scale rock specimens and metal parts, providing an effective means of non-destructive testing for stone building components, etc. It can comprehensively reflect various information about the rock (joints, fissures, strength, etc.). It is the preferred instrument for engineering testing units and universities.

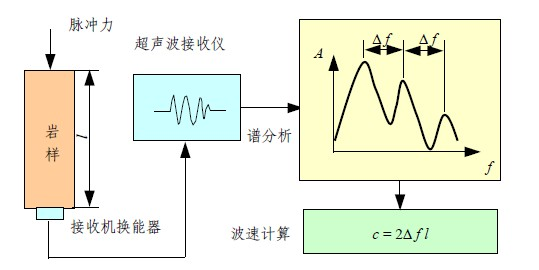

Working Principle Diagram:
Application Areas:
1. P-wave and S-wave velocity testing of indoor rock cores and samples
2. Testing of rock cores and columns under pressure in the laboratory
3. Outdoor wave velocity testing in single boreholes and between boreholes in rock masses
Compliance:
● "Code for Rock Testing of Water Conservancy and Hydropower Engineering" SL264-2001
● "Code for Geophysical Exploration of Water Conservancy and Hydropower Engineering" SL326-2005
● China's Water Resources Industry Standard <
Technical Features:
1. Fine workmanship, using a professional chassis
2. Intuitive interface, easy operation
3. Dual-channel receiving circuit, high detection efficiency
4. Can connect to various sources such as piezoelectric, magnetostrictive, and electric spark, expandable functionality
5. Automatic interpretation of the first arrival time and sound wave, efficient on-site data processing
6. Data transmission via USB port, compatible with U-disks and memory cards
7. On-site calculation of depth-wave velocity and depth-wave amplitude curves, clear analysis results
8. Dual-power supply (AC/DC), battery life of more than 6 hours
9. Data in hexadecimal can be converted to ASCII code, displaying specific numerical values and changes, one column recording time, one column recording fluctuation magnitude.
Performance Indicators:
| Model | JQB-WV Wave Velocity Tester |
| Main Control Form | Built-in Industrial Computer |
| Sampling Method | Separate Transmission and Reception |
| Display Mode | 7.4-inch true color display screen 640×480 |
| Operation Method | Touch Screen |
| Storage Mode | Electronic Hard Disk |
| Depth Counting Method | Manual Recording |
| Trigger Method | Signal Trigger, External Trigger |
| Sampling Interval | 0.1μs～200μs |
| Record Length | 0.5k, 1k, 2k, 4k, 8k adjustable |
| Transmission Voltage | 500V/1000V selectable |
| Amplification Gain | 82dB |
| Number of Channels | One transmission channel, two receiving channels |
| Number of Profiles per Test | Two profiles |
| Transmission Pulse Width | 0.1μs～100μs continuously adjustable |
| Bandwidth | 300Hz～500kHz |
| Reception Sensitivity | ≤30 |
| Crosstalk | ≤1/400 |
| Data Transmission Mode | USB Transmission |
| Operating Temperature | -5℃～+40℃ |
| Power Supply Mode | Built-in lithium battery ≥5 hours |
| Dimensions | 25×16×7cm |
| Weight | 2kg (including battery) |
